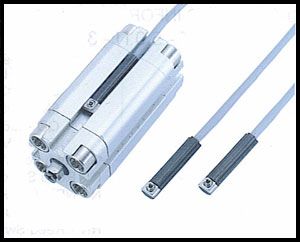

KT-50 SERIES
KT-50R, KT-50P, KT-50N, KT-50RN, KT-50RP
SPECIFICATION
MODEL KT-50R KT-50N KT-50P
WIRING 2 Wire 3 Wire



SCHEMATIC

OUTPUT Reed Switch
NPN
 PNP
LEAD WIRE TYPE Horizontal
POWER VOLTAGE DC/AC 5 ~220V DC 10 ~30 V
LOAD VOLTAGE DC/AC 5 ~220V DC 10 ~30 V
LOAD CURRENT
100 mA max
CURRENT CONSUMPTION _ 20 mA @ 24VCD max
INTERNAL VOLTAGE DROP 3.0V max 2V max
LEAKAGE CURRENT _ 0.05 mA max.
SWITCHING TIME 2mS Max 1mS Max
SHOCK 30G 50G
VIBRATION 90 m/s² (9G), Double Amplitude 1.5 mm
INSULATION RESISTANT DC 500 V 100M Ohm ( lead wire to case)
WHITSTAND VOLTAGE AV 1000V (50/60Hz) 1 minute ( lead wire to case)
PROTECTION CLASSIFICATION IEC529 IP67
INDICATOR RED LED RED LED YELLOW LED
CABLE 2C, 0.15 mm² 3C, 0.15 mm²
TEMPERATURE RANGE -10 to +70°C


SPECIFICATION
MODEL KT-50RN KT-50RP
WIRING 3 Wire



SCHEMATIC

OUTPUT
Reed Switch (NPN)
Reed Switch (PNP)
LEAD WIRE TYPE
Horizontal
POWER VOLTAGE DC 10 ~30 V
LOAD VOLTAGE
 DC 10 ~30 V
LOAD CURRENT 500 mA max
CURRENT CONSUMPTION 5 mA @ 24VCD max
INTERNAL VOLTAGE DROP 0.1V max
LEAKAGE CURRENT _
SWITCHING TIME 2mS Max
SHOCK 30G
VIBRATION
90 m/s² (9G), Double Amplitude 1.5 mm
INSULATION RESISTANT
DC 500 V 100M Ohm ( lead wire to case)
WHITSTAND VOLTAGE
AV 1000V (50/60Hz) 1 minute ( lead wire to case)
PROTECTION CLASSIFICATION
IEC529 IP67
INDICATOR RED LED YELLOW LED
CABLE 3C, 0.15 mm²
TEMPERATURE RANGE -10 to +70°C

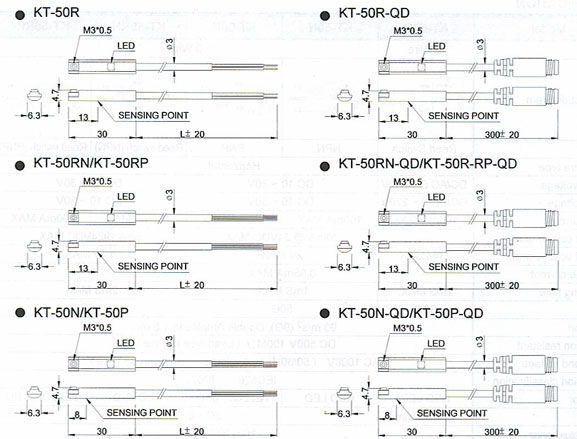

DIMENSION

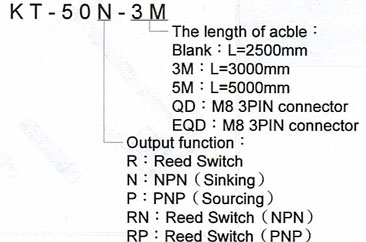

Ordering Information
