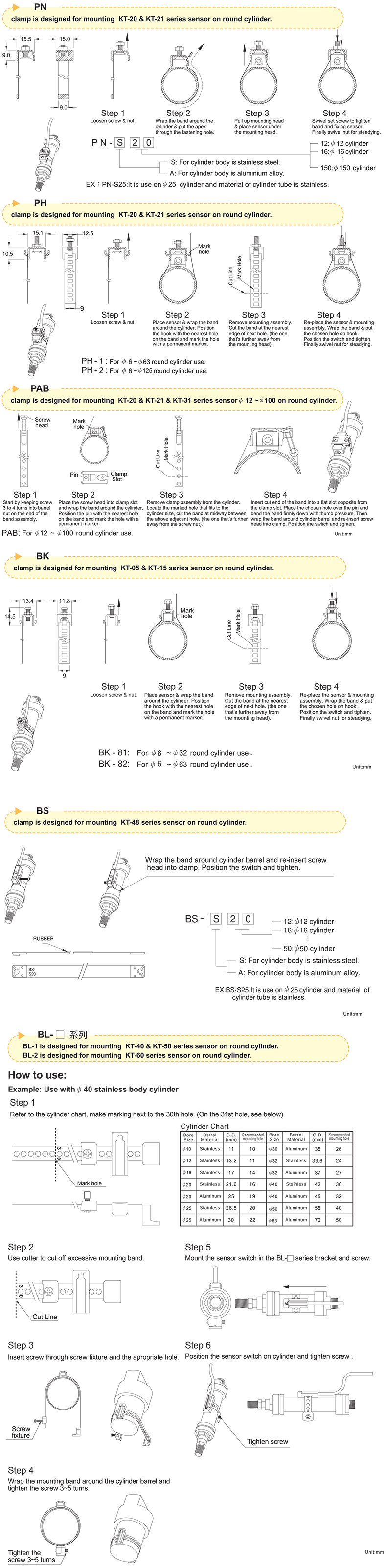

MOUNTING PARTS (CLAMPS)

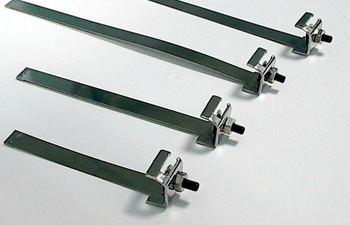

PN
PN clamp is designed for mounting KT-20 & KT-21 series sensor on round cylinder.
Step1
Loosen screw& nut. 		Step2
Wrap the band around the cylinder & put the apex through the fastening hole. 		Step3
Pull up mounting head& place sensor under the mounting head.		 Step4
Swivel set screw to tighten band and fixing sensor. Finally swivel nut for steadying.
EX: PN-S25 is use on 25φ cylinder and materials of this cylinder tube is stainless.

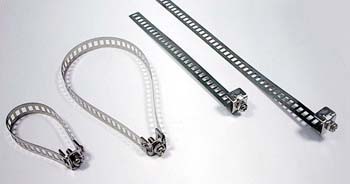

BK-S
BK-S clamp is designed for mounting KT-03 & KT-15 series sensor on round cylinder.

Step1
Loosen screw & nut.

Step2
Place sensor & wrap the band around the cylinder, Position the hook with the nearest hole on the band and mark the hole with a permanent marker.

Step3
Remove mounting assembly. Cut the band at the nearest edge of next hole. (The one that's further away from the mounting head).		 Step4
Re-place the sensor & mounting assembly. Wrap the band & put the chosen hole on hook . Position the switch and tighten. finally swivel nut for steadying.
BK-S-81: For 10φ ~ 32φ round cylinder use.
BK-S-82: For 10φ ~ 63φ round cylinder use.
