Fluid
Power Accessories |
Connection
Size (BSP) |
Options
|
Product
Images
click for large images |
Detailed Specification
in PDF
|
 |

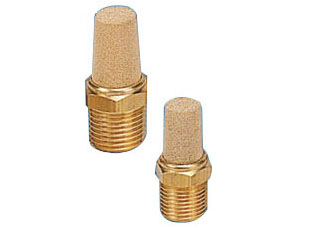

BM-SERIES
Our most popular sintered Bronze Muffler with Solid BRASS ferrule.
Available in wide varieties of options and sizes. |
08=10-32NF
18=1/8"
28=1/4"
38=3/8"
48=1/2"
68=3/4"
88=1"
|
10-micron
90-micron
Metric Sizes
Nickel-plated fitting
|
 |
|

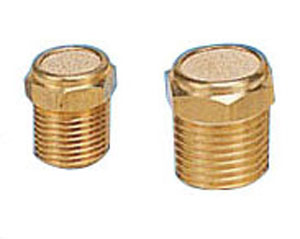

BV-SERIES
Low profile Breather Vents, often used on single acting cylinders
or valves to prevent dirt and foreign particles from entering
ports open to the atmosphere, or vacuum relief or pressure equalization
for gear boxes, crank cases and storage tanks, etc. |
08=10-32
18=1/8"
28=1/4"
38=3/8"
48=1/2"
68=3/4"
88=1" |
10-micron
90-micron
Metric Sizes
Nickel-plated fitting
(Complete or fitting only) |
 |
|

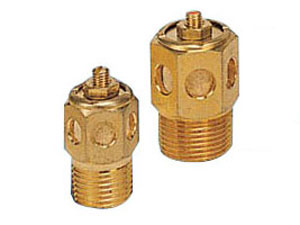

SCM-SERIES
Speed Control Mufflers provide infinite variation of air flow
control at an acceptable sound level on the exhaust ports of air
valves with complete safety. |
18=1/8"
28=1/4"
38=3/8"
48=1/2"
|
Metric Sizes |
 |
|

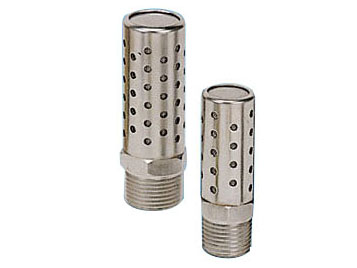

HFSM-SERIES
High Flow Steel Mufflers utilize a 50 mesh, self cleaning stainless steel screen in a tough steel shell to withstand shock and continuous
heavy duty use in all applications. |
18=1/8"
28=1/4"
38=3/8"
48=1/2"
68=3/4"
88=1"
|
Metric Sizes
All Stainless |
 |
|

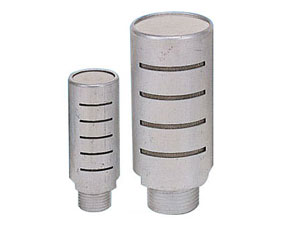

HFMA-SERIES
High Flow Muffler features a 50 mesh, self-cleaning stainless
steel screen, and combined with corrosion resistant aluminum shell
to create a highly efficient, ultra-quiet muffler designed with
minimal back pressure. |
18=1/8"
28=1/4"
38=3/8"
48=1/2"
68=3/4"
88=1"
|
Metric Sizes |
 |
|
HFMP-SERIES
Built with the same concepts as our popular HFMA-Series but more
affordable. Our HFMP-Series utilize glass-filled nylon housing
which is ultrasonically welded for maximum strength. |
18=1/8"
28=1/4"
38=3/8"
48=1/2"
|
Metric Sizes
Yellow Housing |
 |
|

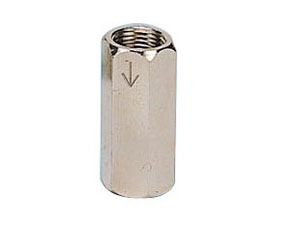

CHV-SERIES
CHV-Series check valves are used in fluid systems to permit free flow of air in one direction (forward flow) and prevent flow in the opposite direction (reverse flow), as indicated by an arrow stamped on the valve body. |
18=1/8"
28=1/4"
38=3/8"
48=1/2"
|
None |
 |
|

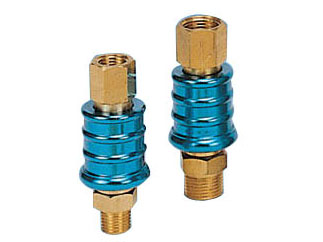

SLV-SERIES
SLV-Series sleeve valves combine high flow capability with short stroke in a small package. Unlike ball valves, sleeve valves do not require space for a handle. SLV-Series sleeve valves feature smooth opening/closing operation. Outlet is exhausted to atmosphere when the valve is closed. Unit is constructed of brass body and anodized aluminum sleeve for corrosion resistance. |
18=1/8"
28=1/4"
38=3/8"
48=1/2" |
None |
 |
|
SPBM-SERIES
SPBM-Series muffler utilizes our very popular BM-Series muffler modified to fit with an external flow adjustment screw. The external flow adjustment screw accurately varies orifice opening from closed to full flow as required. The final position is then locked in place by the lock nut. Unit should be mounted in a protective position free from excessive vibration. Use wrench on hex head to tighten unit to the device. All units contain 40-micron filter element. |
18=1/8"
28=1/4"
38=3/8"
48=1/2" |
None |
 |
|
PEM-SERIES
PEM-Series muffler uses high-density porous polyethylene body ultrasonically welded to the solid polyethylene base. It is light weight, durable and highly effective for noise reduction without excessive back pressure. The uniquely structured porous polyethylene channels escaping air through a tortuos path reduce the noise level within OSHA requirements. The durable porous polyethylene body can withstand high working pressures up to 150 PSI. In an unlikely event of a blowout, resilient porous plastic body will not shatter, therefore no danger of flying fragments. The polyethylene plastic is completely non-corrosive and highly resistant to water and oil usually present in compressed air lines and can be easily cleaned with methylene chloride or similar cleansing fluid.
Available in three (3) air flows:
- Standard flow (70 um - black base)
- Fine flow (20 um - blue base)
- Medium flow (35 um - red base)
Unit should be mounted in a protective position free from excessive vibration. Hand tightens to the device only.
|
18=1/8"
28=1/4"
38=3/8"
48=1/2"
68=3/4"
88=1"
|
None |
 |
|

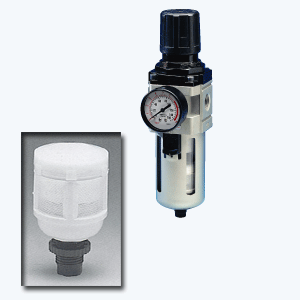

IFR-SERIES
Economic air filter and pressure regulator combined into one compact
unit. Standard see-through aluminum bowl guard, gauge and build-in
float type auto-drain.
Auto Drain DA-480A (small image)
|
1/4"
3/8"
1/2"
|
None |
 |
|

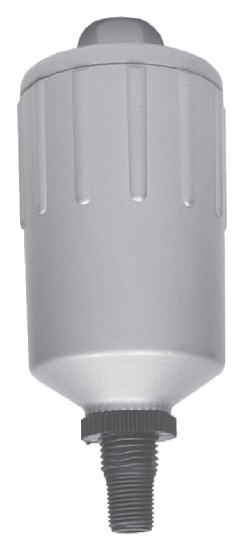

AD 300-28
AD automatic drop-leg is used in compressed air systems to automatically bleed water from the piping network. Automatic drain valve is actuated by water level float in normal pressurized system; it also opens when system is not pressurized, allowing water to escape by gravity. Unit can be dissembled and serviced without special tools; unique pre-filter cup prevents clogging and can be easily cleaned. Unit should be installed at low points in the piping and at the far end of the distribution network where water is most likely to accumulate.
|
Top=1/4"
Drain=1/8"
|
None |
 |
|
SHV-SERIES
Sliding Hand Valves are 4-way, 3-position, rotary disc, manual-operated
air valves. Recommended for stationary air cylinders, arbor presses,
and/or as a throttling valve for positioning air cylinder.
|
28=1/4"
38=3/8"
48=1/2"
|
None |
 |
|
